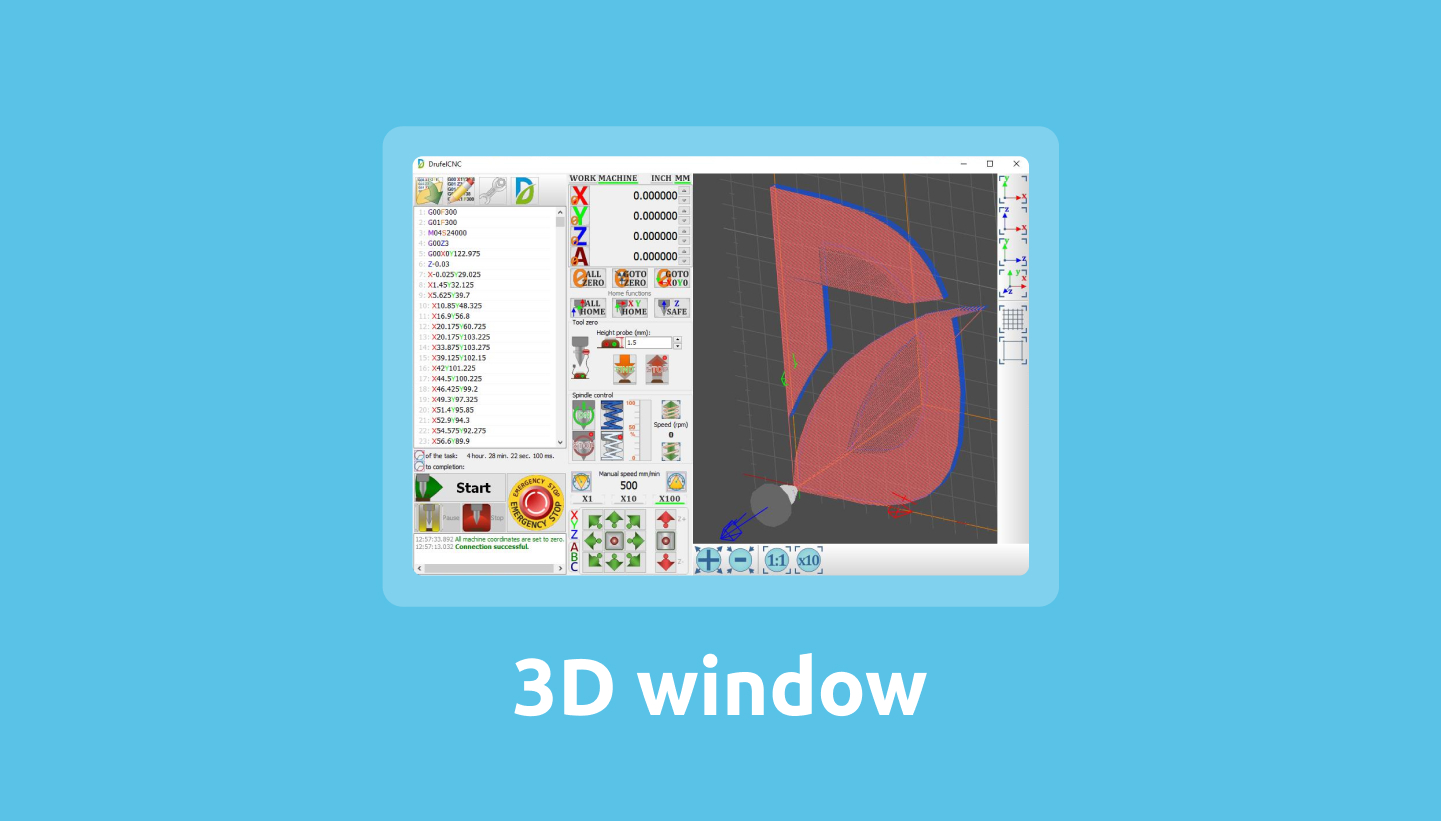

The G-code you downloaded is displayed as a 3D model on the right side of the application window.
To rotate the 3D model, move the mouse pointer over the display area of the 3D model. Right-click and hold to move the mouse pointer. You can also use additional buttons.
To zoom in on the 3D model, use the mouse wheel or these buttons:
To move the model in the plane, use the left mouse button.

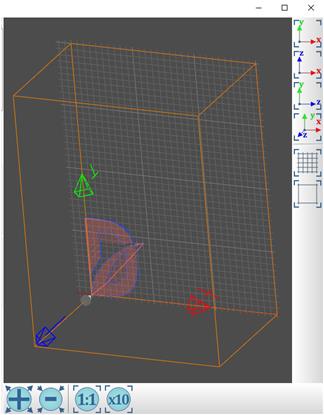

To turn on the grid, click on the button:
To disable the grid, click on the button:

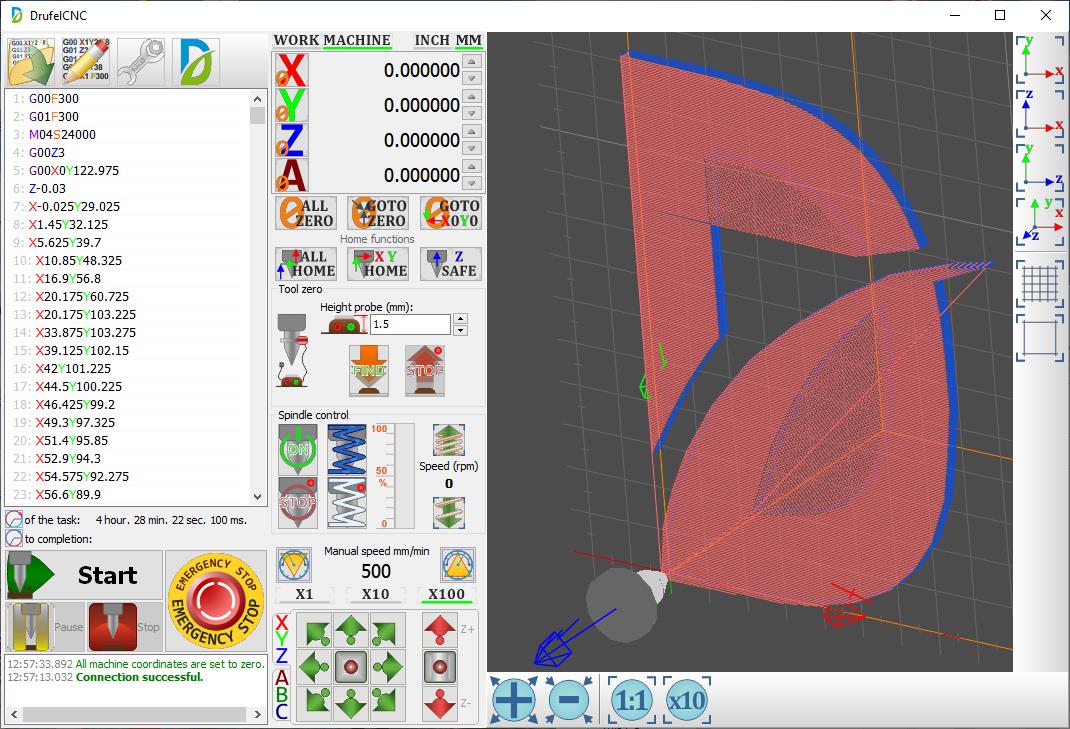

For the convenience of information perception, a virtual spindle was implemented. It is displayed in a 3D window.
