4.2. Controller Configuration

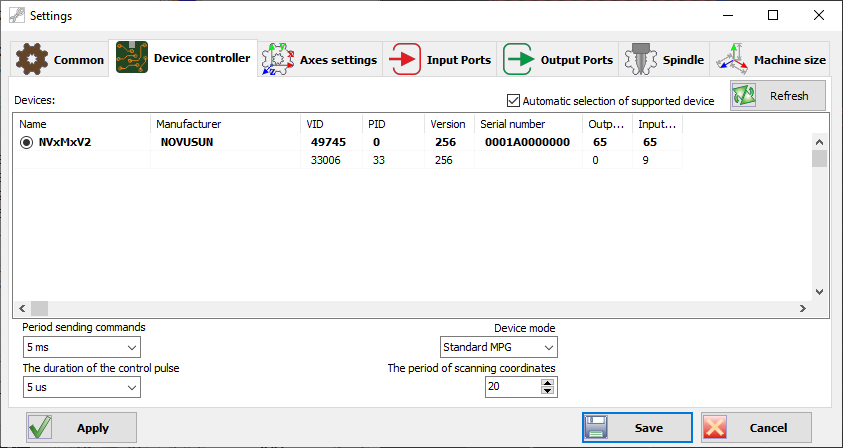

In the window that opens, go to the «Device Controller» tab. In the hardware section, you must select a controller by setting a point in the radio button block opposite the USB controller. Save the settings.
