3. Run the program

To run the program, use the version depending on the bitness of your operating system:

• - DrufelCNCx32.exe - version for 32-bit operating systems
• - DrufelCNCx64.exe - version for 64-bit operating systems

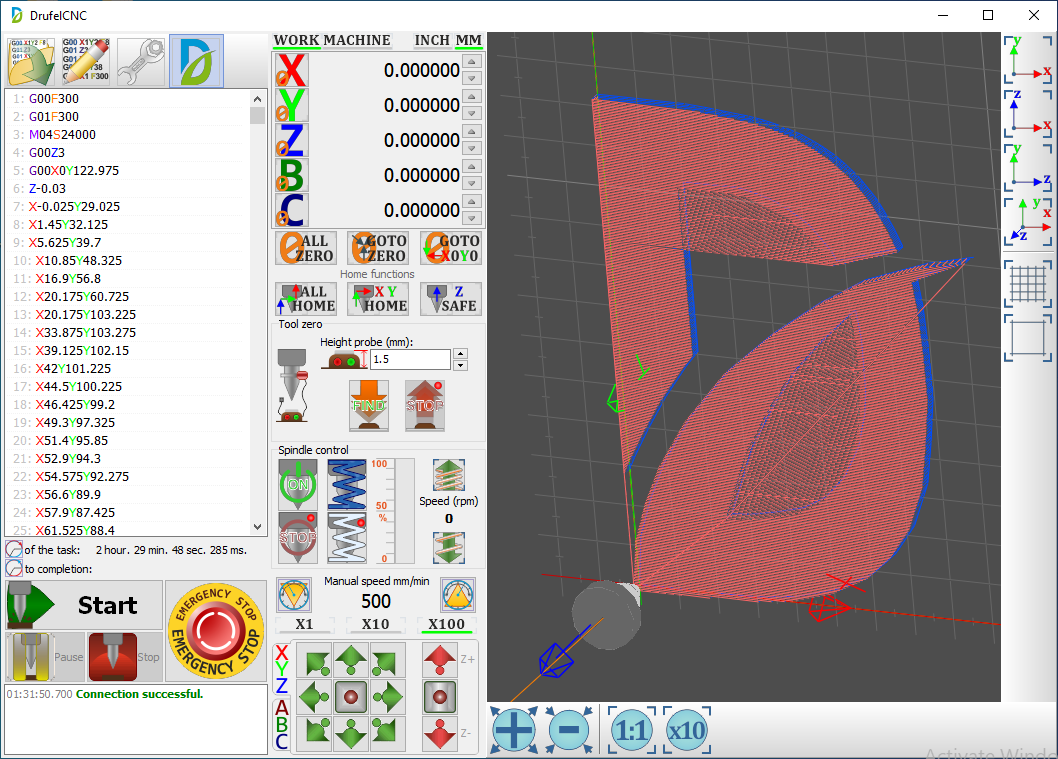

The main window of the program.
In the lower left corner displays the status of the connection to the USB controller, and other informational messages.
